High temperature resistant conductive polymer chip tantalum capacitor

Product features:

●Due to the use of high temperature resistant anode and cathode materials, the maximum allowable service temperature can reach 150 ℃, and the leakage current is small.

●With very low ESR and low ESL [equivalent series inductance], the filter circuit with higher frequency can be used;

●No combustion and explosion in case of accidental breakdown, no fire and secondary breakdown effect, and good safety;

●The switching power supply circuit with low impedance is not sensitive to surge current and voltage. It only needs to be reduced by 10-20% to ensure high safety and low failure rate;

●Low internal resistance, higher ripple resistance, greatly reduced heat generated during filtering and high-power discharge, better filtering effect, and easier discharge waveform to meet technical requirements;

●The reliability is one order of magnitude higher than that of the chip tantalum capacitor with manganese dioxide cathode;

●The filter circuit with high ripple and high power and high frequency discharge circuit can be used without large derating;

●Executive standard: QJ / pwv518-2013

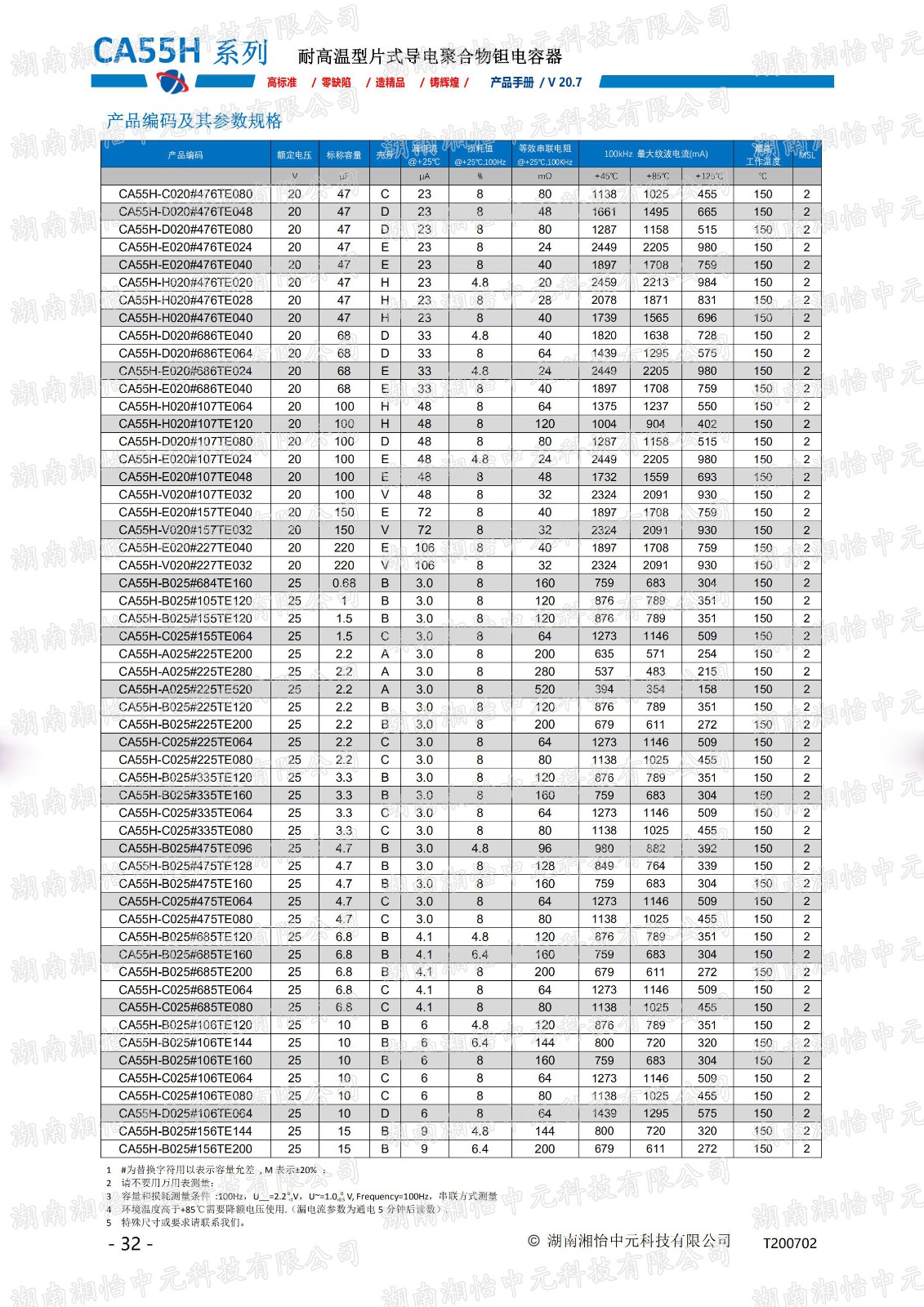

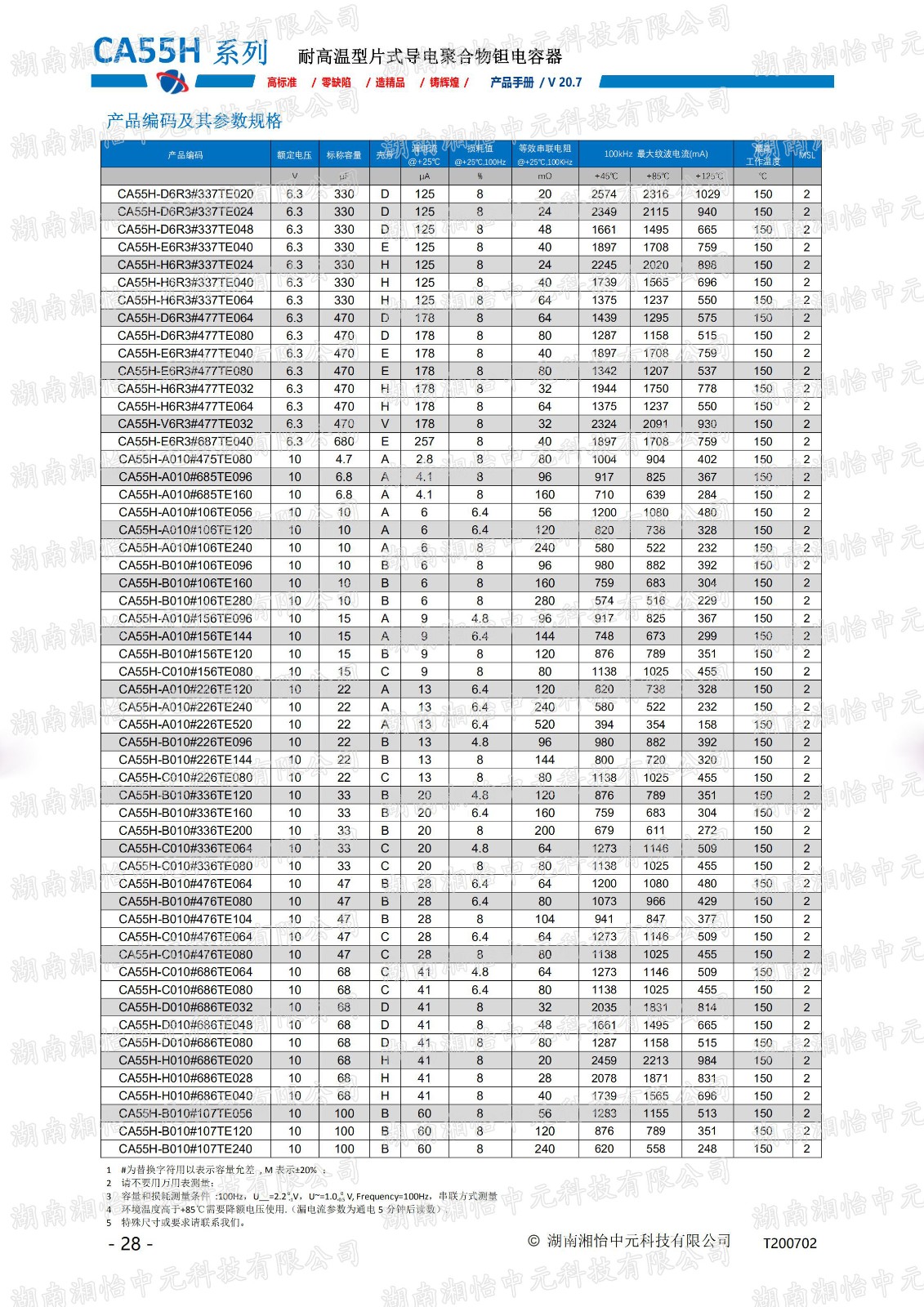

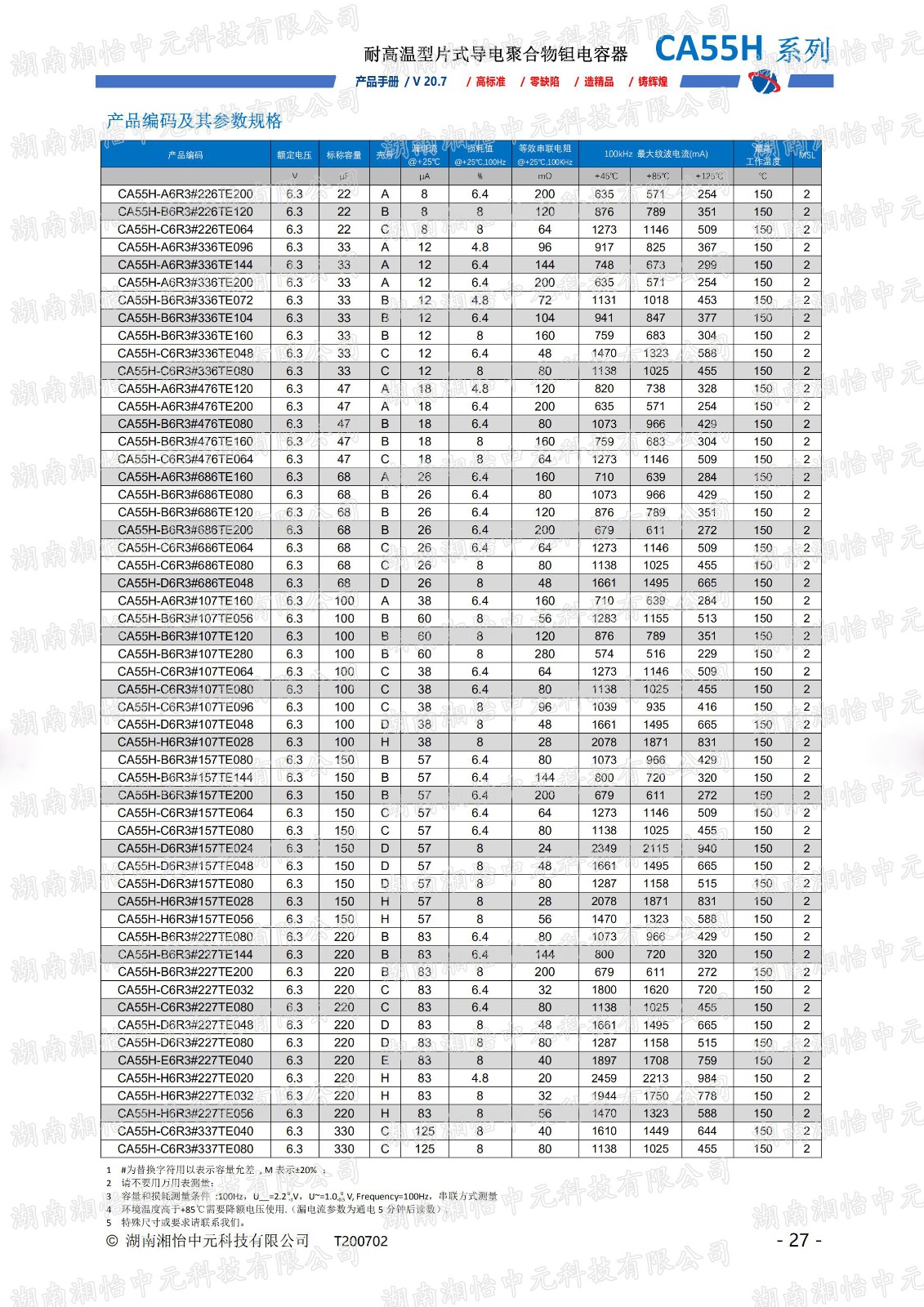

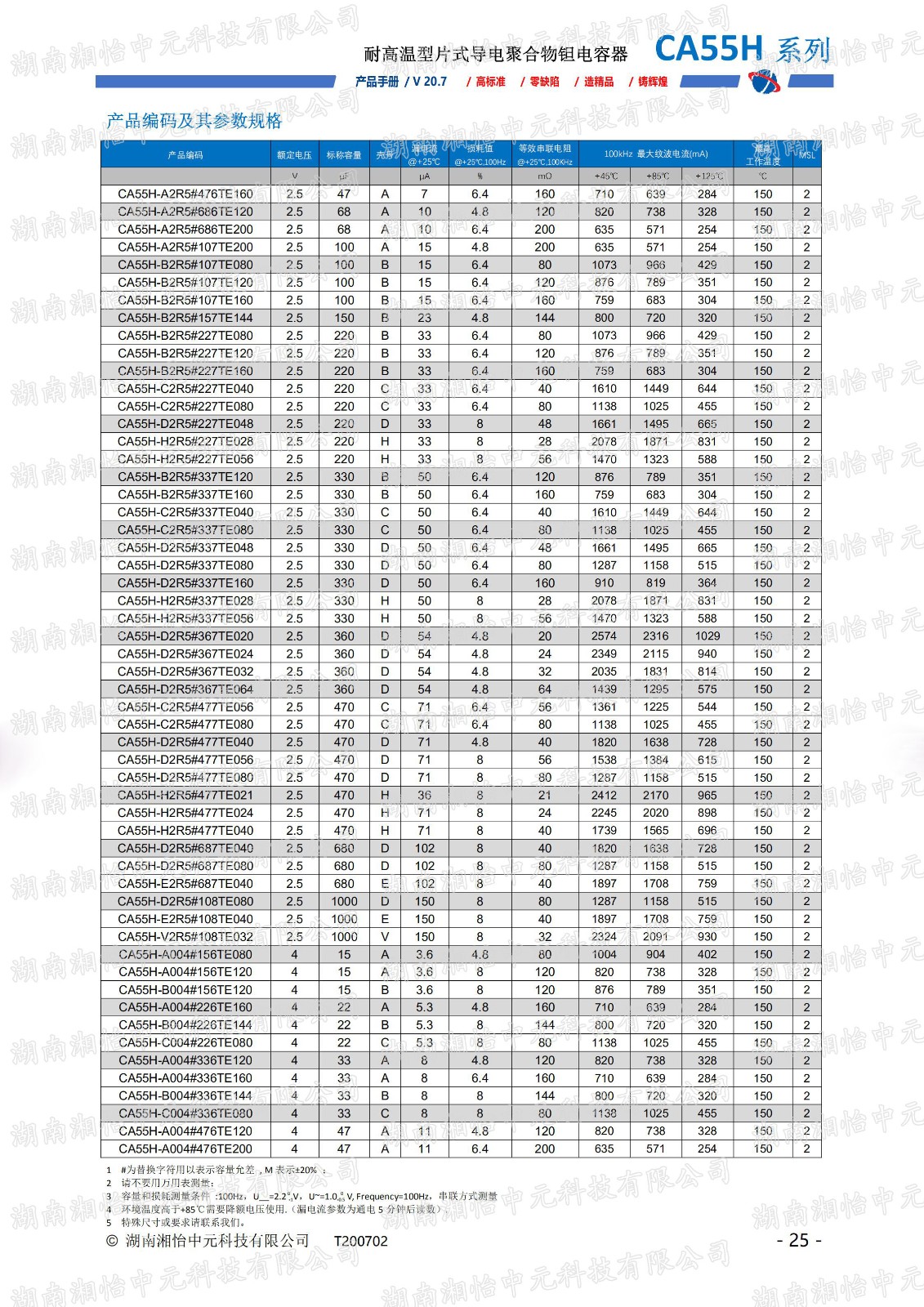

产品手册展示：
