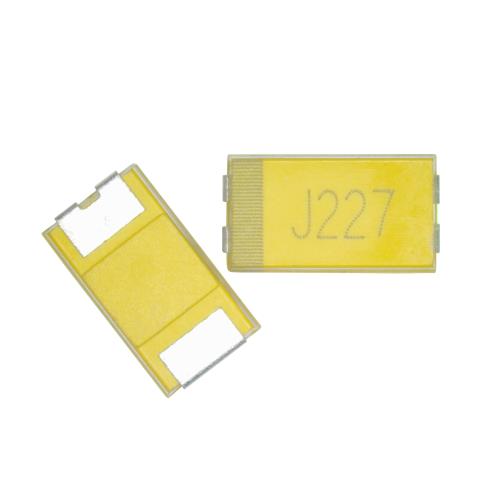

Conventional chip tantalum solid electrolyte capacitors

Conventional chip tantalum solid electrolyte capacitors【下载次数:91】

Product features:

●It has very high working electric field strength and is larger than any type of capacitor to ensure its miniaturization;

●It is very convenient to obtain large capacitance, and there are few competitors in power filter, AC bypass and other applications;

●It has single guide electricity, i.e. the so-called "polarity". In application, the current should be connected according to the positive and negative directions of the power supply. The anode (positive pole) of the capacitor is connected to the "+" pole of the power supply, and the cathode (negative pole) is connected to the "- pole of the power supply. If the capacitor is not connected correctly, the capacitor will not work, and the leakage current is very large, and the core will be heated in a short time, and the oxide film will be damaged and then it will be invalid;

●The working voltage has a certain upper limit, but the disadvantage can be made up with transistor or integrated circuit power supply;

●It has the performance of storing electricity, charging and discharging;

●Implementation standard: QJ / pwv109-2003


常规片式固体电解质钽电容器

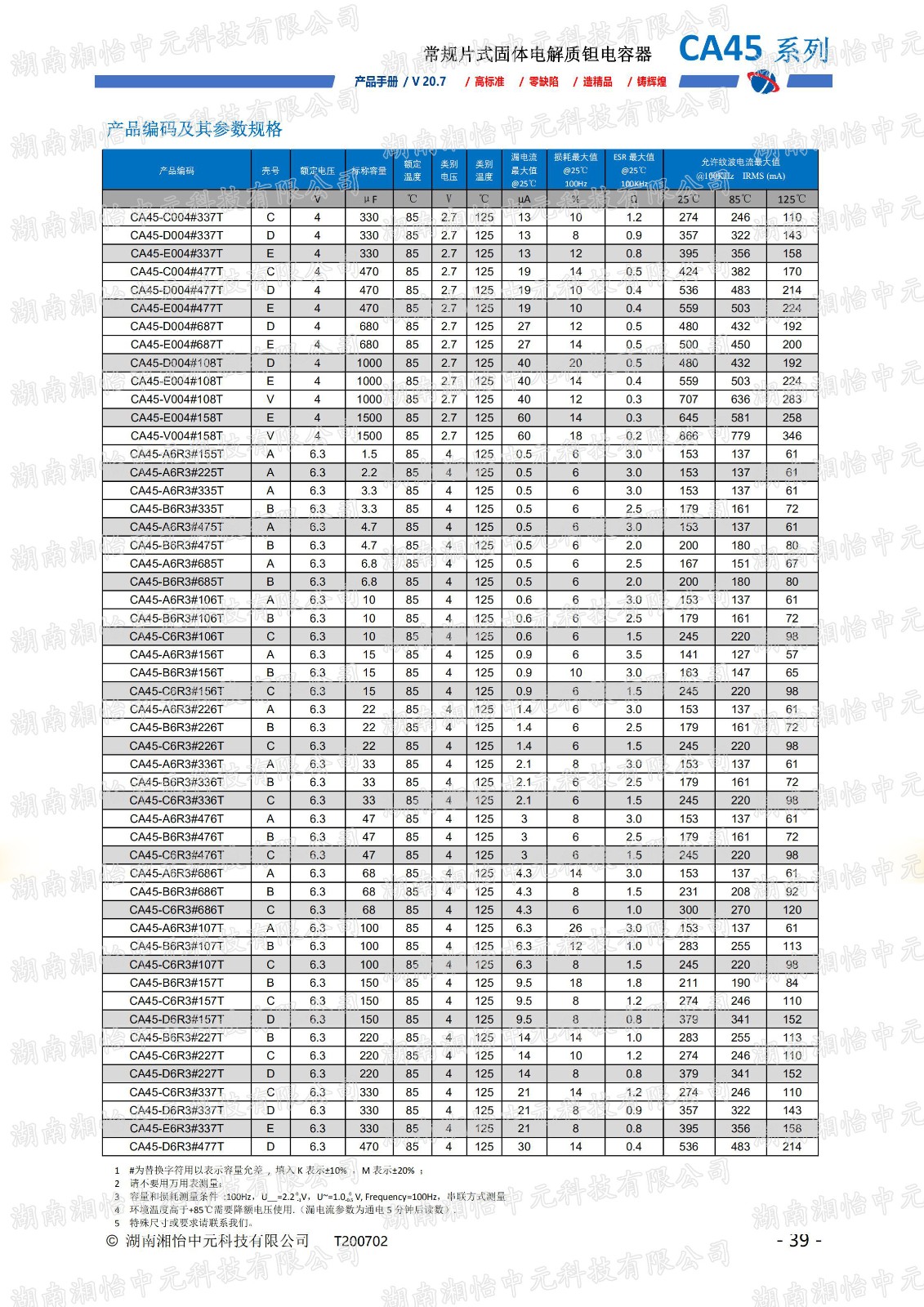

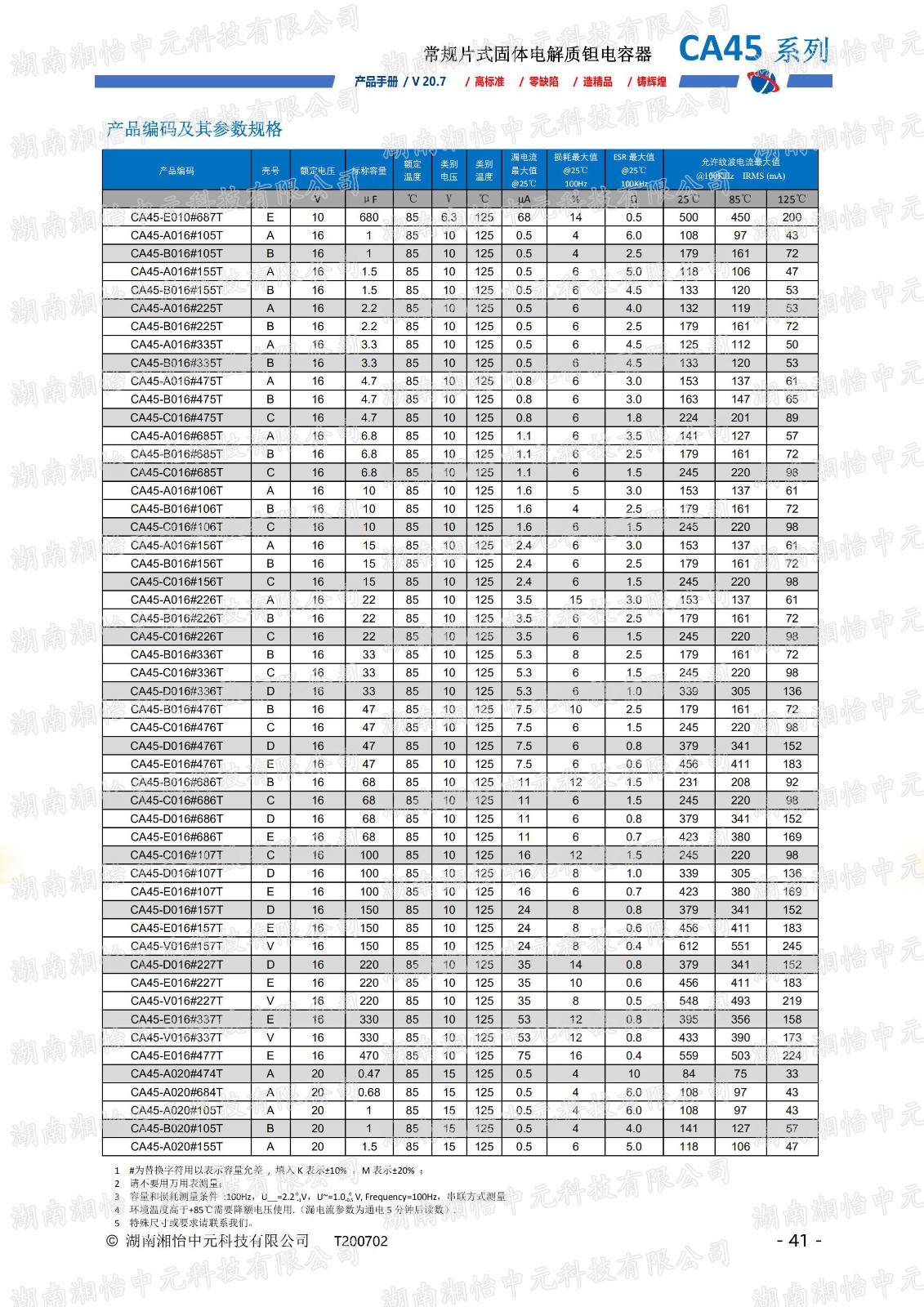

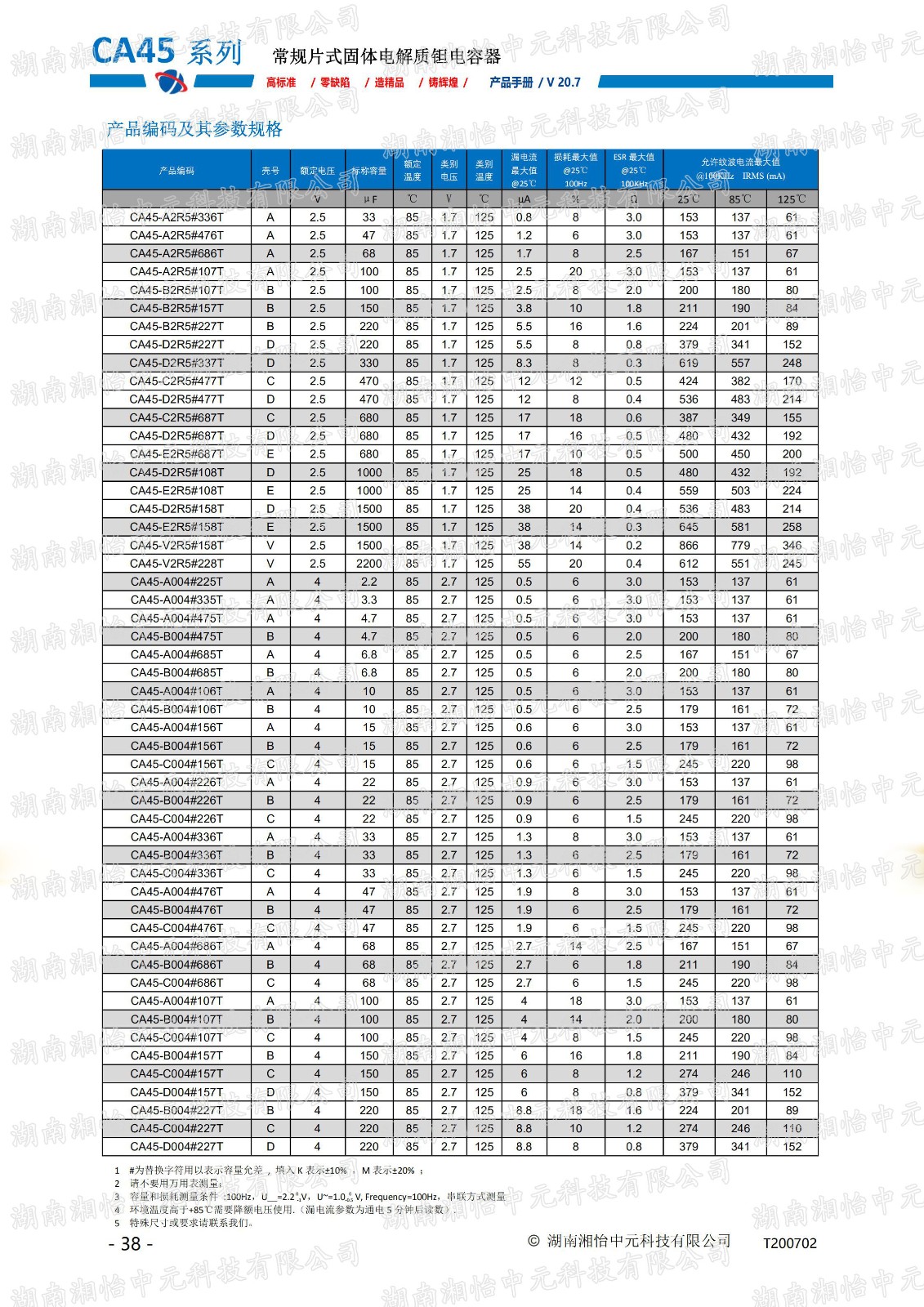

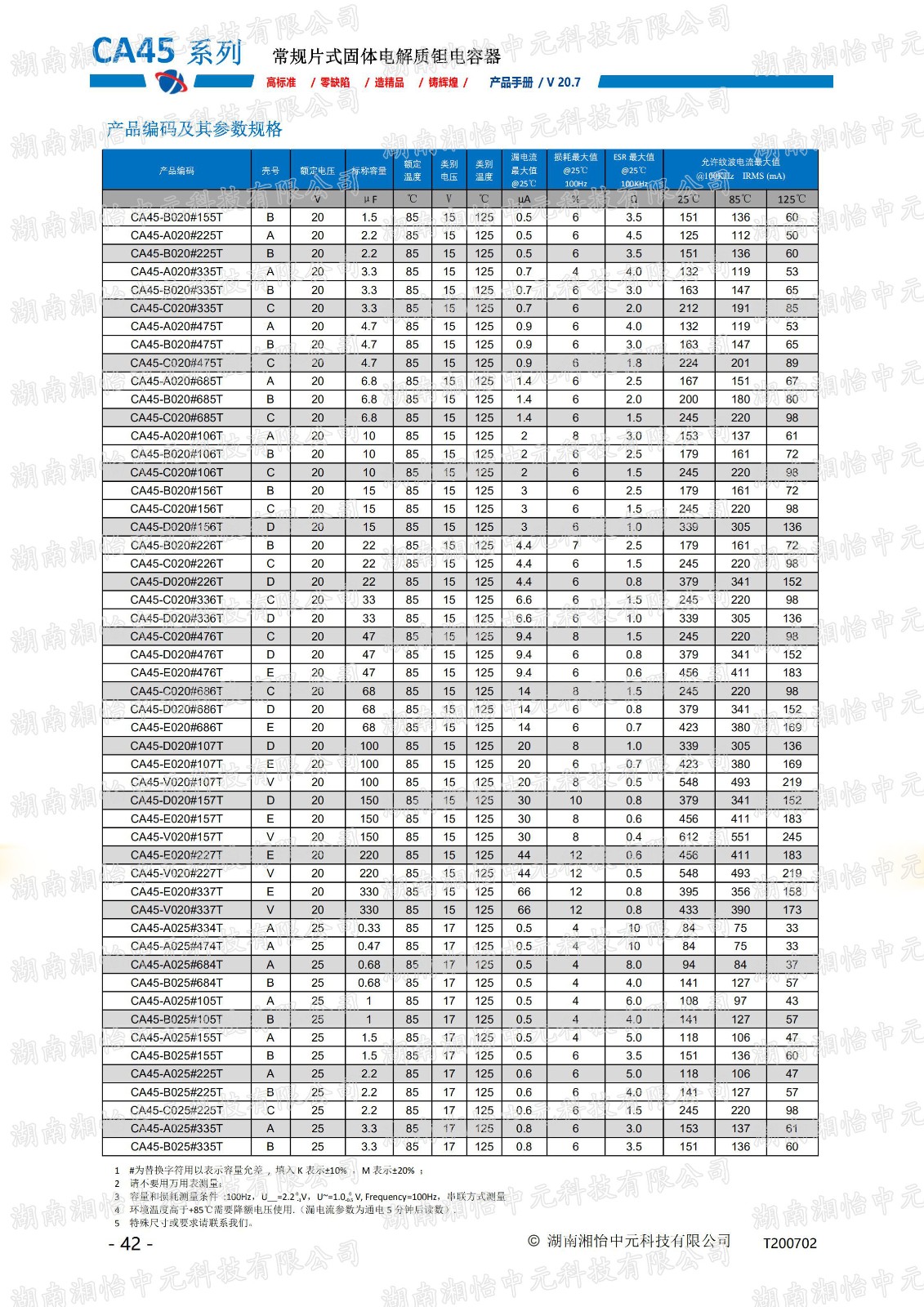

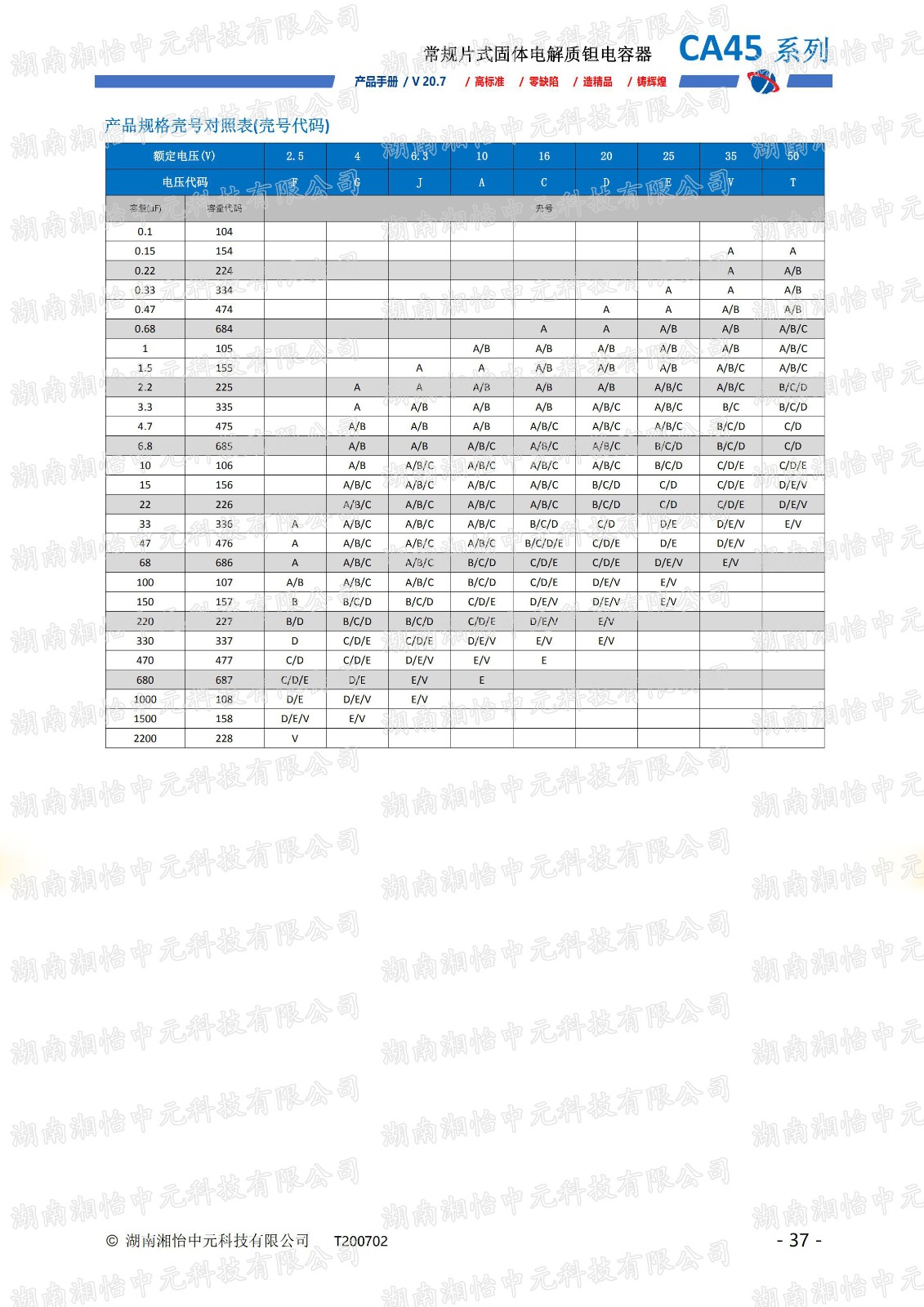

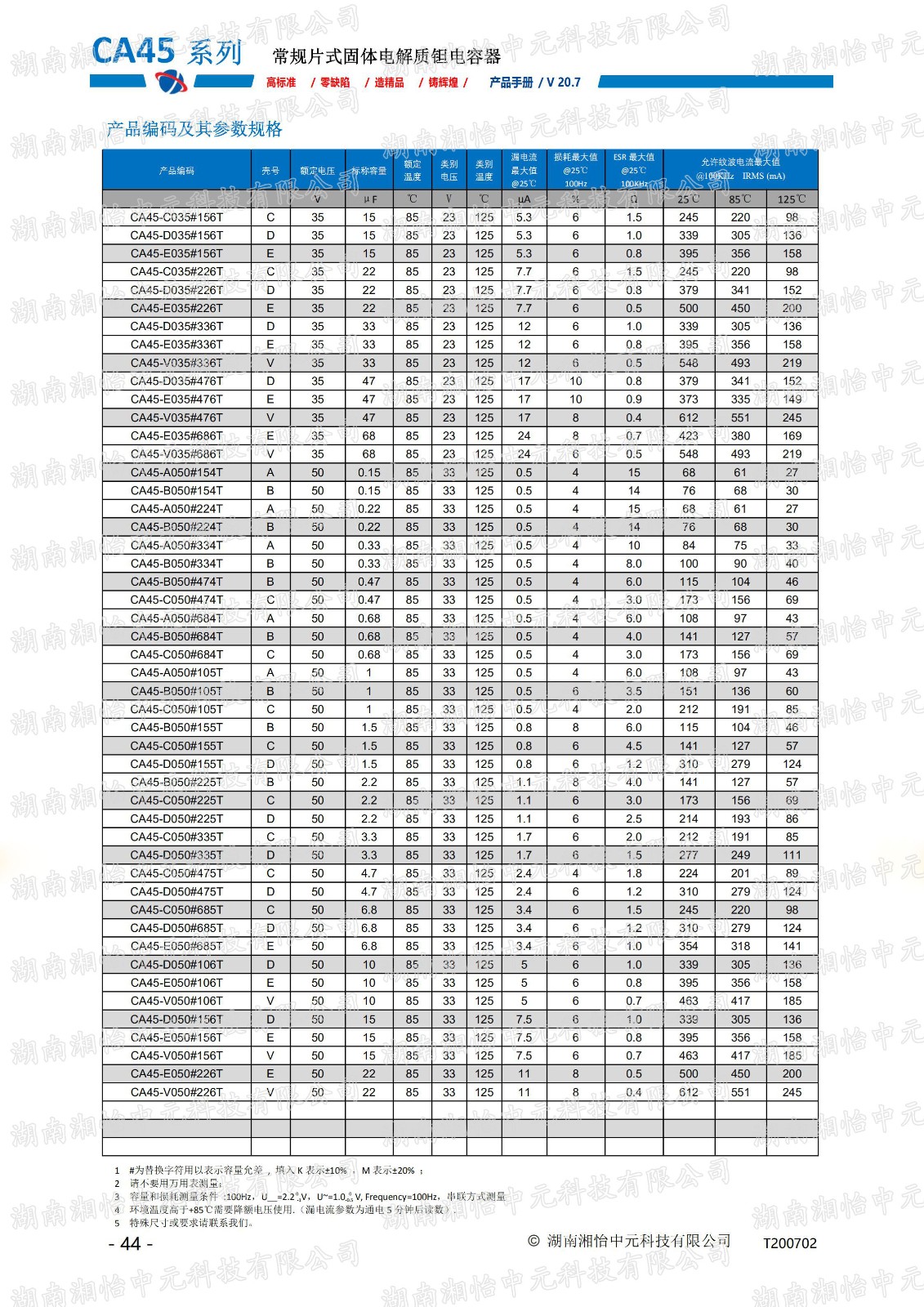

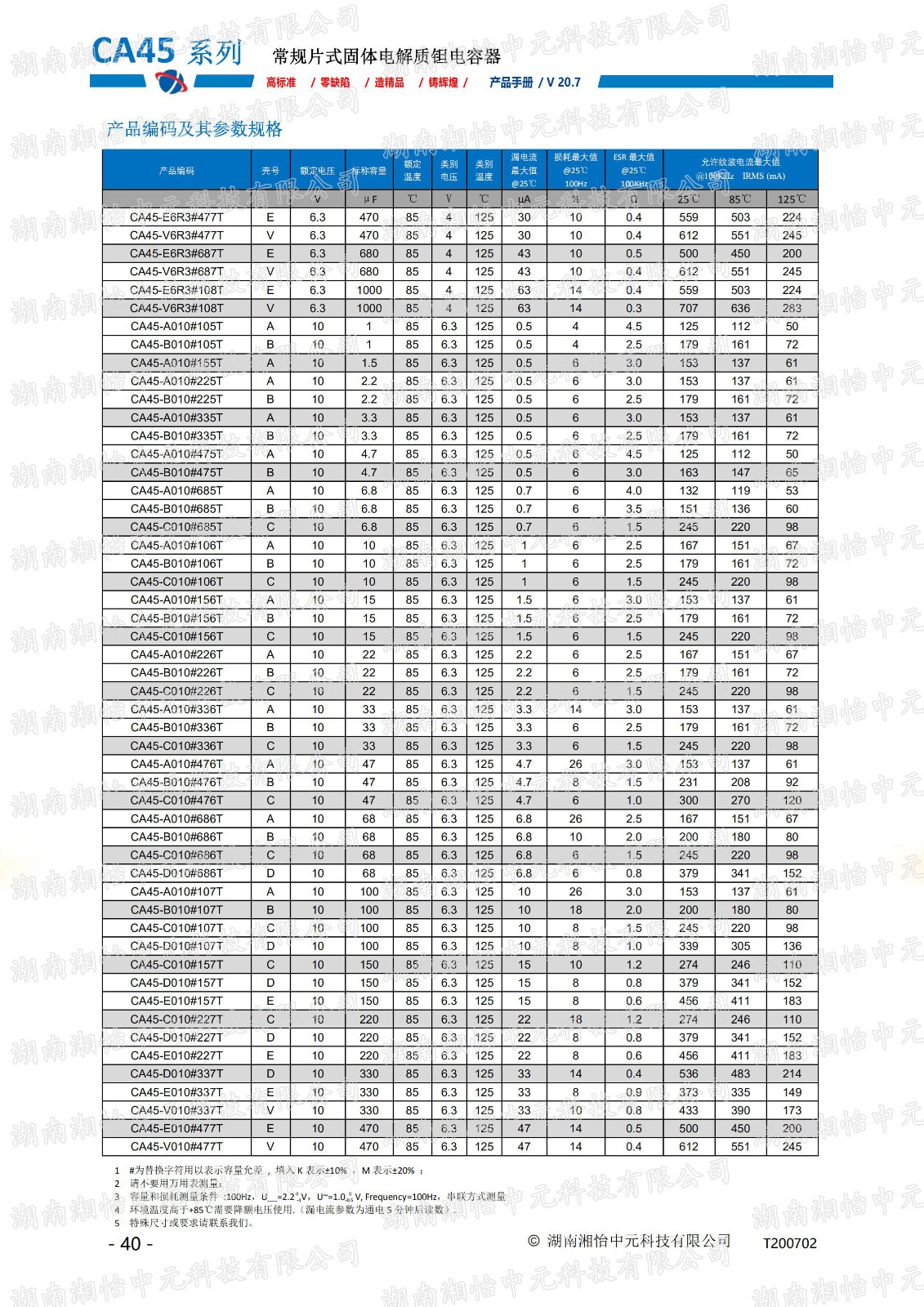

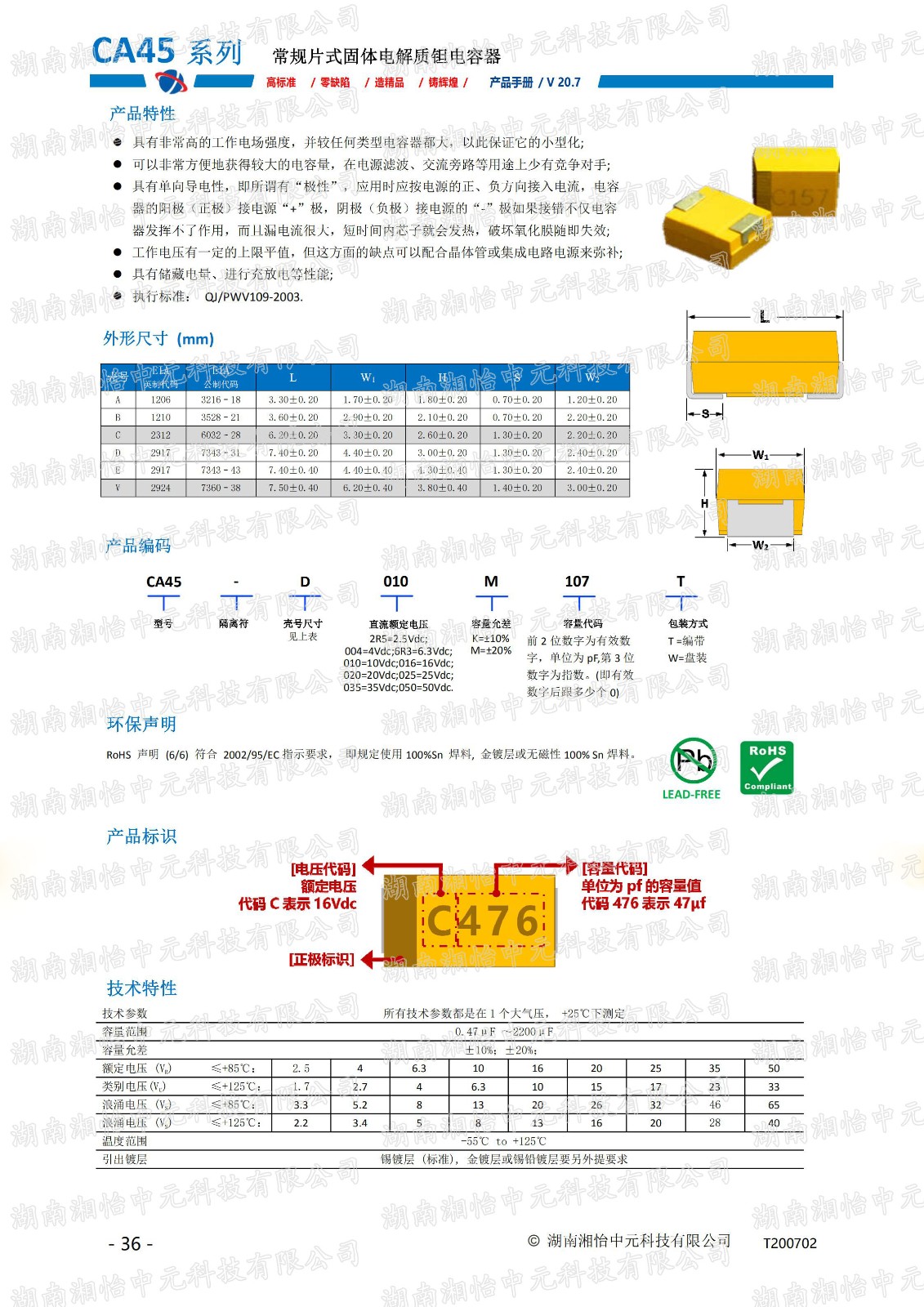

产品手册展示:

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍

常规片式固体电解质钽电容器产品介绍
