Ultra low ESR type conductive polymer chip tantalum capacitor

Ultra low ESR type conductive polymer chip tantalum capacitor【下载次数:81】

Product characteristics:

● It has extremely low ESR and lower esl[equivalent series inductance], which can be used in filter circuit with higher frequency;

● It will not burn and explode during accidental breakdown, and will not cause fire and secondary breakdown effect, and it has good safety;

● It is used in low impedance switching power supply circuit, which is insensitive to surge current and voltage. Only 10-20% derating is required to ensure high safety and lower loss efficiency;

●Low internal resistance, higher ripple resistance, lower heat generated during filtering and high power discharge, better filtering effect, and easier to meet technical requirements;

● Reliability is higher than that of the chip tantalum capacitor with manganese dioxide as cathode;

● It can be used in high ripple filter circuit and high power and high frequency discharge circuit without large derating;

● Implementation standard: qj/pwv517-2013


超低ESR型导电聚合物片式钽电容器

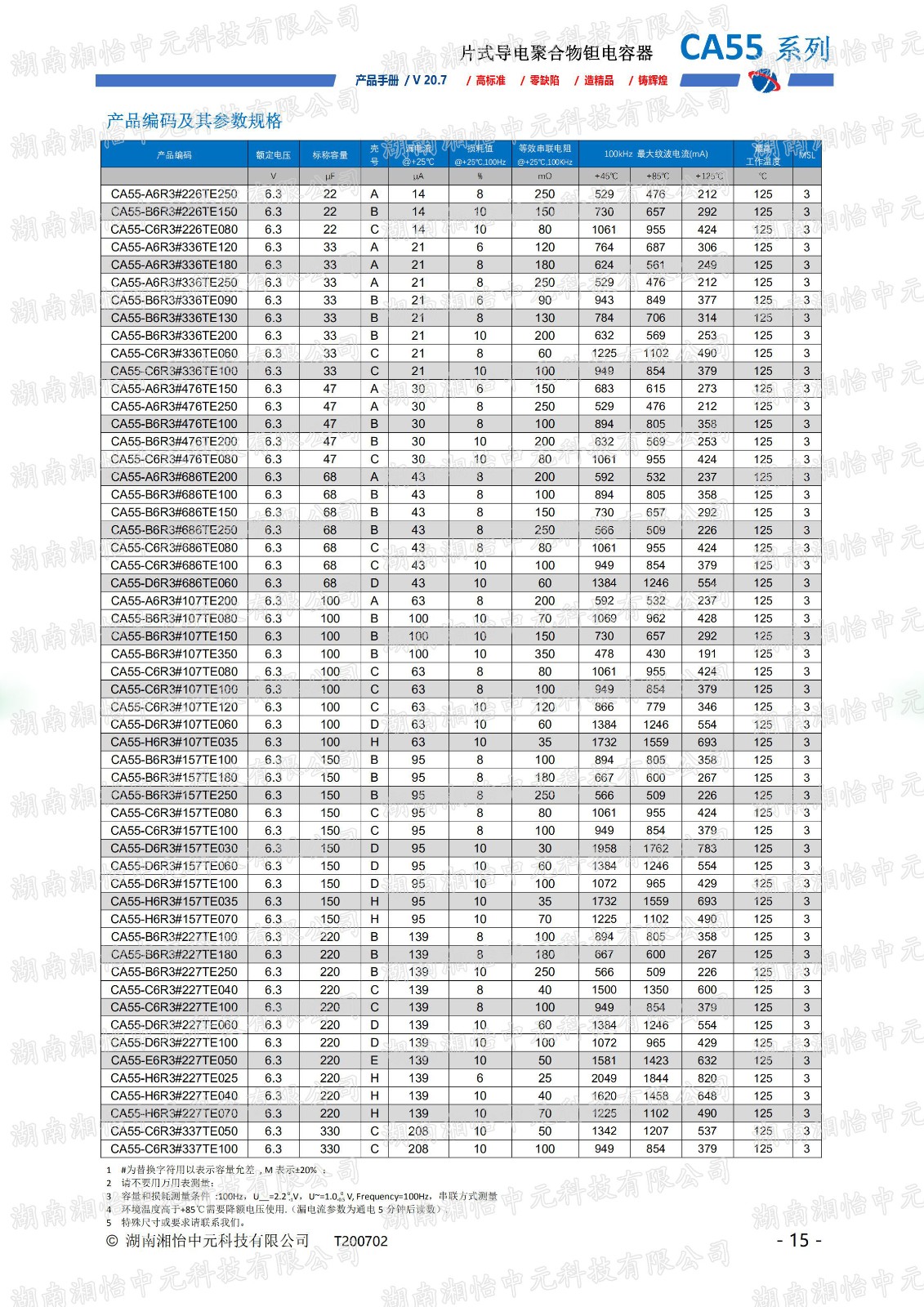

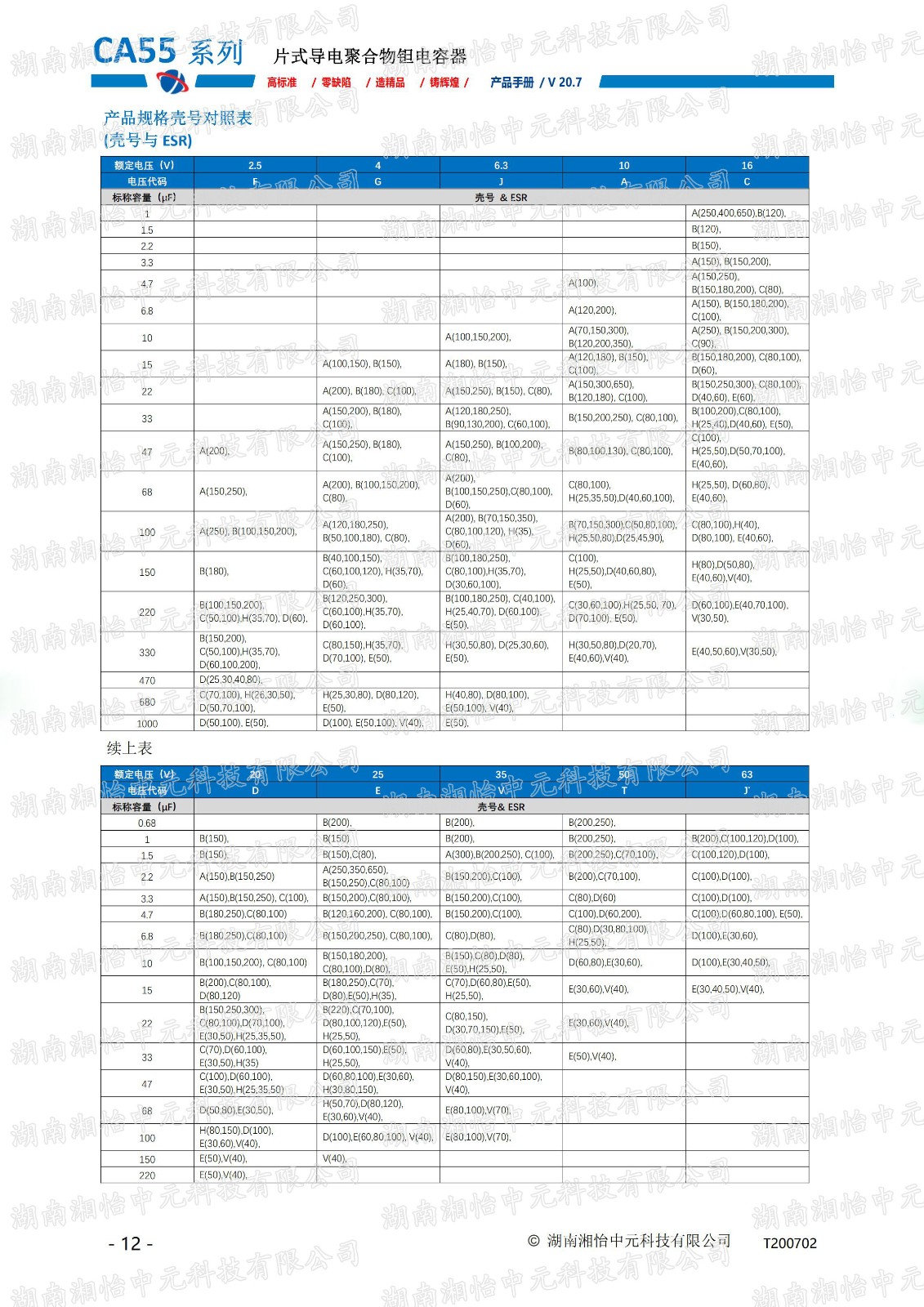

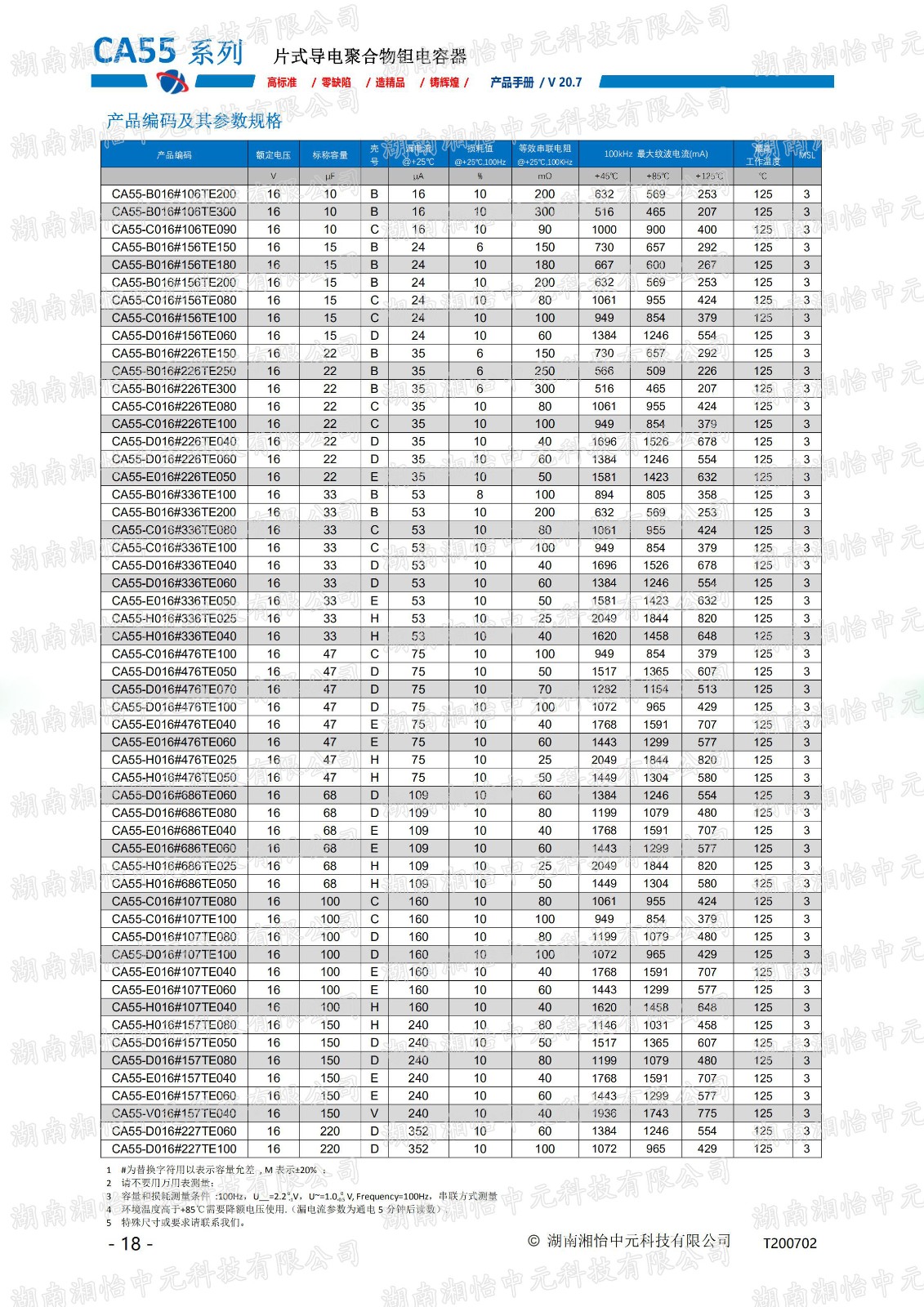

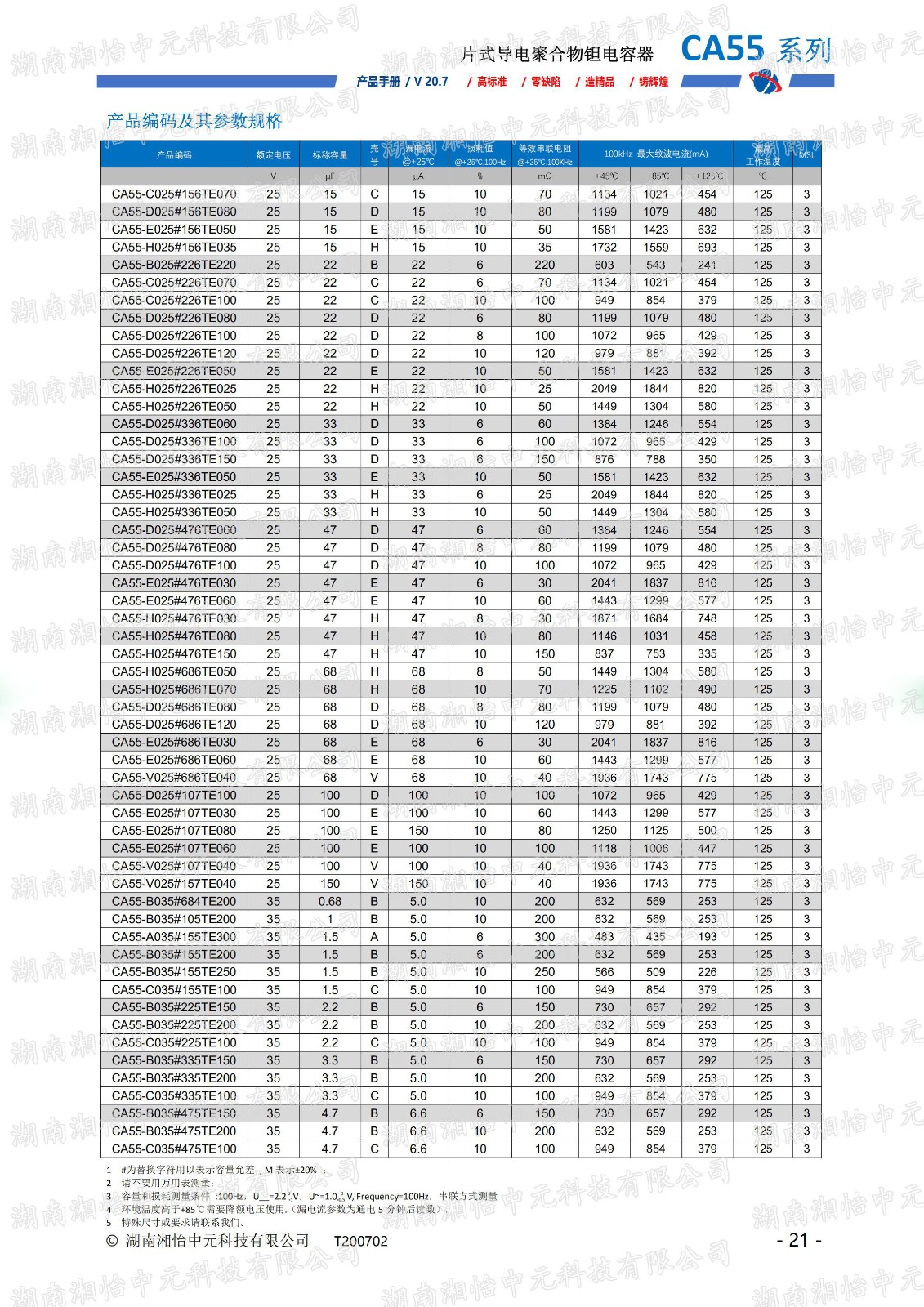

产品手册展示:

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍

超低ESR型导电聚合物片式钽电容器产品介绍
